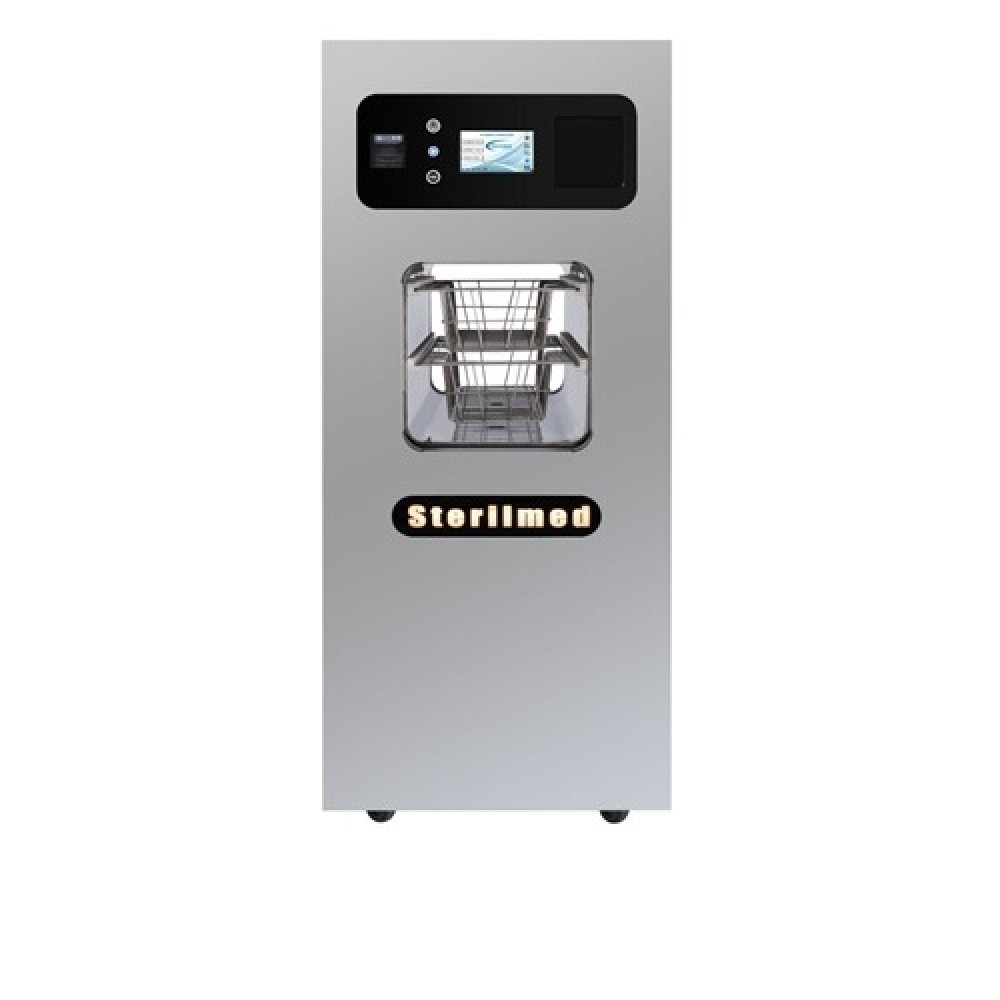

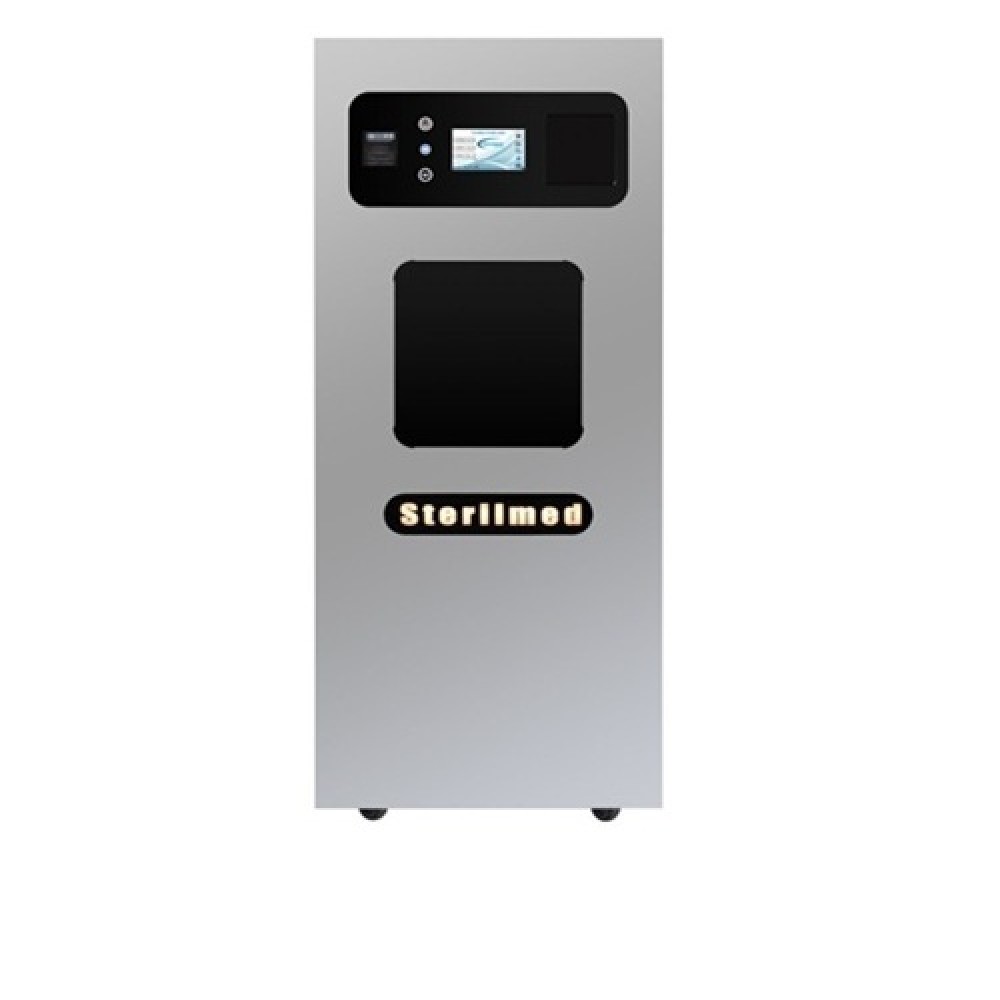

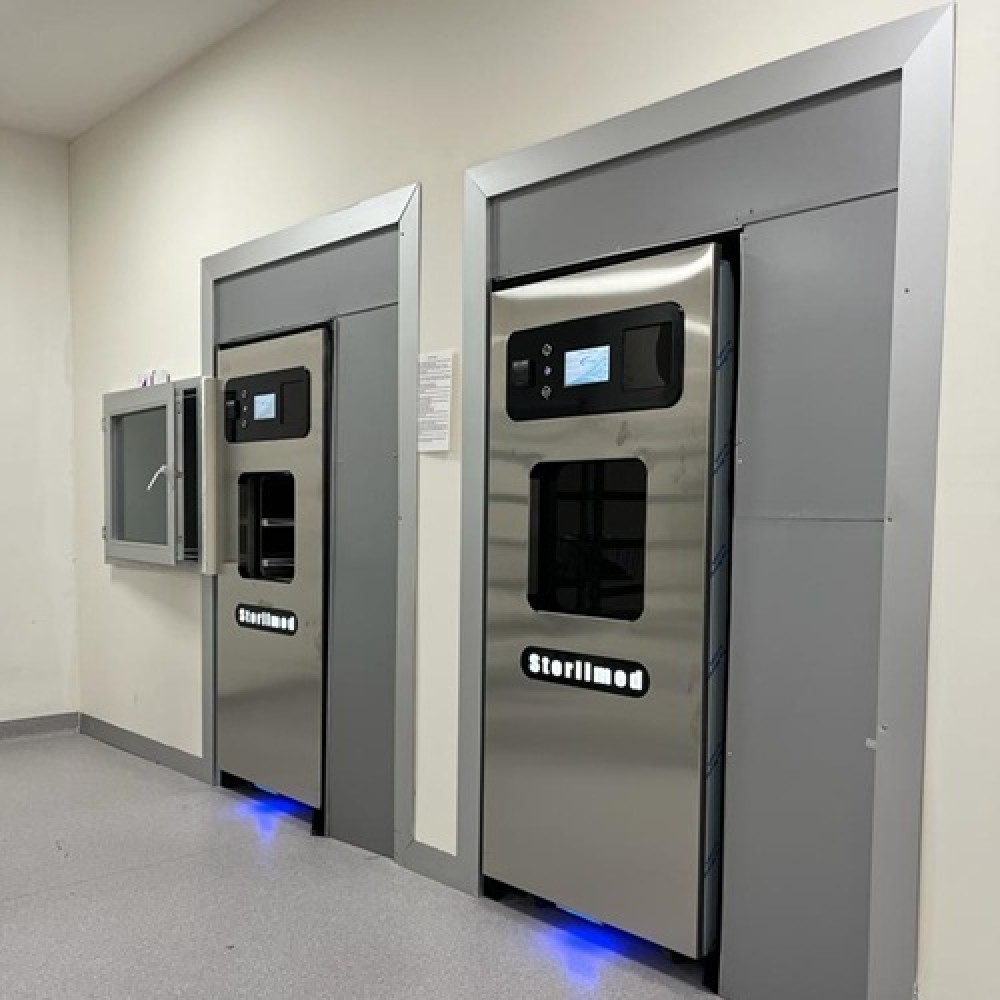

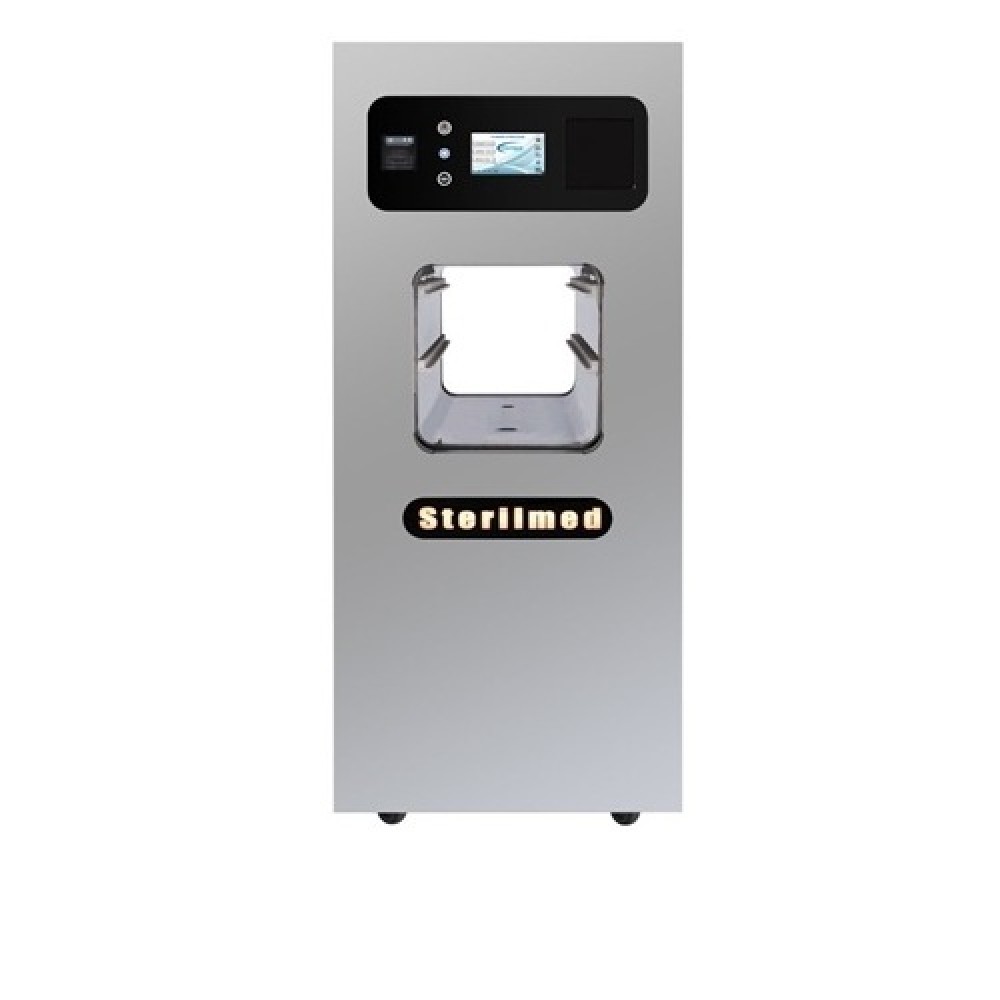

Sterilmed Plasma Sterilizer

Advanced Technology Solution for Sensitive Surgical Instruments: Safely sterilize heat-sensitive and complex surgical instruments with low-temperature hydrogen peroxide plasma technology. An eco-friendly solution that ensures your medical equipment is ready for operation in no time with fast cycle durations and zero toxic residue.

General Features and Design

  • Material Quality: Devices are manufactured from high-quality stainless steel (316 or 304 AISI).

  • Fields of Use: Suitable for use in hospitals, laboratories, prosthetics manufacturers, dental, and veterinary fields.

  • Ergonomic Design: Designed ergonomically for easier and safer loading and unloading operations.

  • Ease of Maintenance: Provides easy one-side access for service and maintenance.

Control and Monitoring

  • Touchscreen: Every step can be monitored on a handy 7″ touchscreen and PLC.

  • Programs: Features full-automatic programs that are adjustable for specific calibrations.

  • Display: Offers both numeric and graphic display modes.

  • Printer: Equipped with an integrated 40-character thermal printer.

Safety and Data Management

  • Safety Measures: Includes an emergency stop button and sensors against obstructions on the doors’ pathway to protect the operator and the device.

  • Door Lock: Doors lock under pressure, and both doors cannot be opened at once in Septic-Aseptic (double-door) models.

  • Warning Systems: Features visual, written, and auditory warning systems.

  • Data Storage: Can store data for up to 1000 cycles.

  • Data Transfer: Data transfer is possible via USB port, RS 232, RS 485, or Ethernet module.

Environmental Awareness and the Future

  • Zero Waste: Devices are manufactured with a “zero waste” mentality, using recyclable or eco-friendly materials.

  • Efficiency: Continuous work is carried out to increase the efficiency of devices for lower water and energy consumption.

Models

Sub-Model

      Chamber – mm

Overall – mm

Model Single Double Width Height Depth Litres Width Height Depth
PL2 PL0210S1 PL0210S2 400 400 650 100 750 1760 840
PL3 PL0312S1 PL0312S2 400 400 800 125 750 1760 990
PL4 PL0415S1 PL0415S2 400 400 950 150 750 1760 1140
